Paper Band Filter System

Enquire Now Download Catalogue

Key Features & Advantages

✔ Extended Filter Paper Life – Reduces the frequency of paper changes, lowering maintenance requirements.
✔ Energy-Efficient Operation – Designed to consume minimal power, ensuring cost-effective filtration.
✔ Versatile Filtration – Compatible with ferrous and non-ferrous metals, as well as non-metallic materials.
✔ Enhanced Surface Finish – Clean coolant ensures a brilliant surface finish on machined workpieces.
✔ Customizable Micron Ratings – Available filter papers include 50 micron, 20 micron, and 10 micron, suitable for various applications.
✔ Magnetic Filter Integration – Can be connected to magnetic filters for optimized contaminant removal.
✔ High Flow Capacity – Supports filtration for capacities ranging from 100 LPM to 1000 LPM.

Why Choose Matrix Paper Band Filters

Efficient Coolant Filtration Improves fluid purity and extends coolant life.
Enhanced Performance Provides clean coolant, improving machining accuracy and surface finish.
Eco-Friendly and Economical Reduces filter paper and power consumption.
Customizable Design Tailored to meet specific industrial requirements.
Durable Construction Ensures reliability for high-demand filtration applications.

Product description
How It Works
Compact Design
Optional Features
Premium Filter
Filtration Process

Matrix Paper Band Filters – Reliable Filtration for Coolants and Metalworking Fluids

Matrix Paper Band Filters provide high-efficiency filtration for contaminated coolants and metalworking fluids discharged from CNC machine tools. Designed for superior reliability, these filters ensure optimum coolant filtration with minimal filter paper and power consumption, making them ideal for high-volume industrial applications.

By offering extended filter paper life, reduced energy use, and compatibility with both ferrous and non-ferrous contaminants, Matrix Paper Band Filters improve fluid purity, workpiece surface finish, and overall operational efficiency.

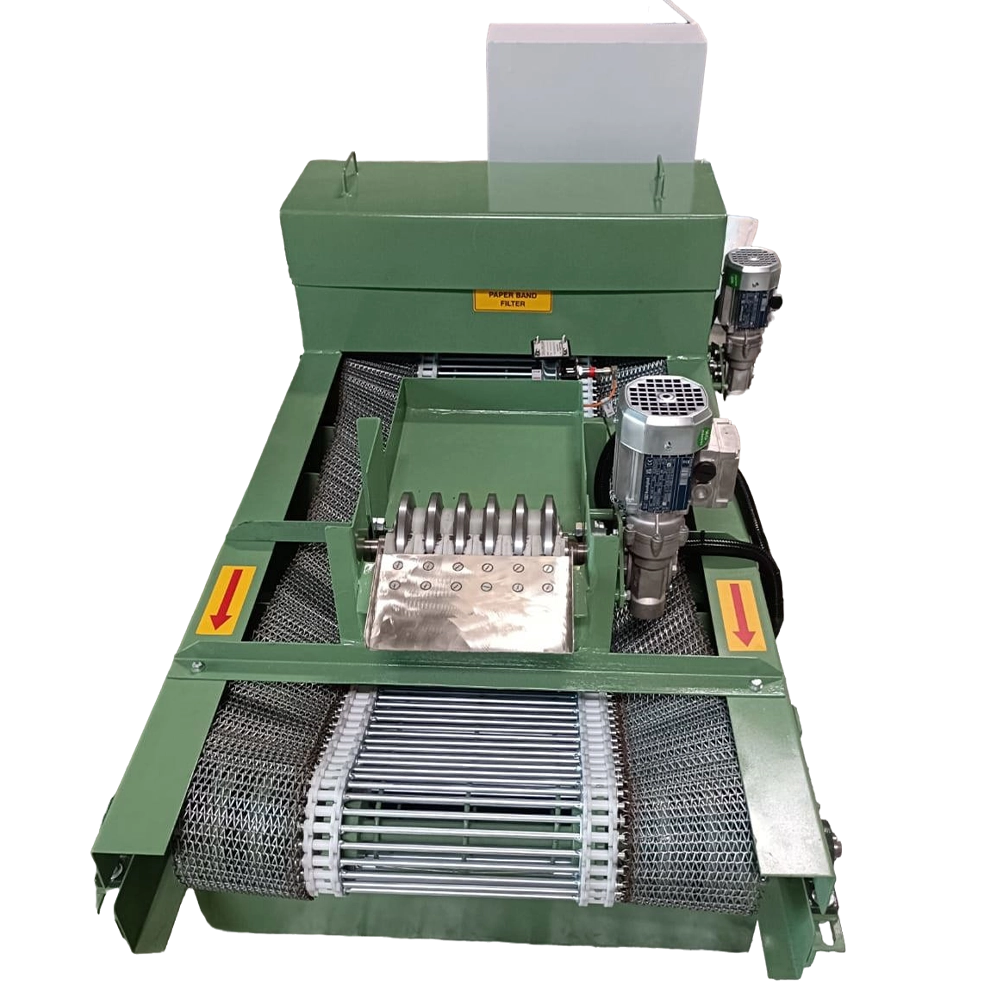

How Matrix Paper Band Filters Work

Matrix Paper Band Filters operate based on a combination of gravity and hydrostatic pressure. Here’s the filtration process:

Contaminated coolant enters the filter through the side inlet port at a controlled velocity, avoiding turbulence.
The coolant flows through the filter media by gravity, enabling efficient contaminant capture.
As contaminants clog the filter media, the coolant level rises, activating the float switch.
The float switch moves the honeycomb chain belt, pulling fresh filter paper from the roll automatically.
Once the coolant level drops, the geared motor stops, resuming normal operation.

Compact Design & Application Range

Matrix Paper Band Filters are ideal for:

Grinding Machines
Honing Machines
Machining Centers
Rolling Mills

These filters are compact and available in various capacities ranging from 100 LPM to 1000 LPM.

Optional Features – Integrated Magnetic Separator

For advanced filtration efficiency, Matrix Paper Band Filters can include an in-built magnetic separator/magnetic filter. This system removes 90% of ferrous particles using high-intensity magnets, reducing filter paper consumption, and optimizing power usage.

Premium Filter Paper Media

Matrix Filtration supplies high-quality non-woven filter paper, designed for coolant and oil filtration applications. Key advantages include:

Lightweight and Strong – Durable yet easy to handle for industrial settings.
Chemical Resistance – Ensures compatibility with a wide range of fluids.
Effective Filtration Characteristics – Captures contaminants while reducing tramp oil.
Cost-Effective Solution – Delivers exceptional value for money, reducing operational costs.

Optimize Your Filtration Process with Matrix Paper Band Filters

Matrix Filtration India Pvt Ltd offers state-of-the-art filtration systems for coolants and metalworking fluids, providing reliable performance, high efficiency, and sustainability.
