Magnetic Filter

Enquire Now Download Catalogue

Key Features & Advantages

Submicron Filtration – Captures contaminants down to submicron levels, ensuring superior fluid purity.
Extended Fluid Life – Preserves lubricant properties, reducing fluid replacement costs.
Consumable-Free Operation – Uses a permanent magnet, eliminating the need for replacement parts.
Zero Power Consumption – Operates without electricity, making it energy-efficient and cost-effective.
Optimized Flow Technology – Maintains high filtration rates without generating back pressure, even when fully loaded.
Superior Surface Finish – Improves component precision and machining accuracy.
Wear Reduction – Minimizes abrasive damage to cutting tools and equipment.

Why Choose Matrix Magnetic Filter

Lower Operating Costs Maximizes fluid lifespan while minimizing maintenance expenses
Improved Productivity Maintains high flow rates while preventing equipment damage
Eco-Friendly Solution No power or consumables required, ensuring sustainability.
Enhanced Machine Longevity Reduces wear and extends cutter/tool lifespan
Perfect Fine Filtration Provides submicron-level filtration without requiring additional

Product description
How It Works
Cleaning & Maintenance
Industry Applications
Filtration Process
Technical Specifications

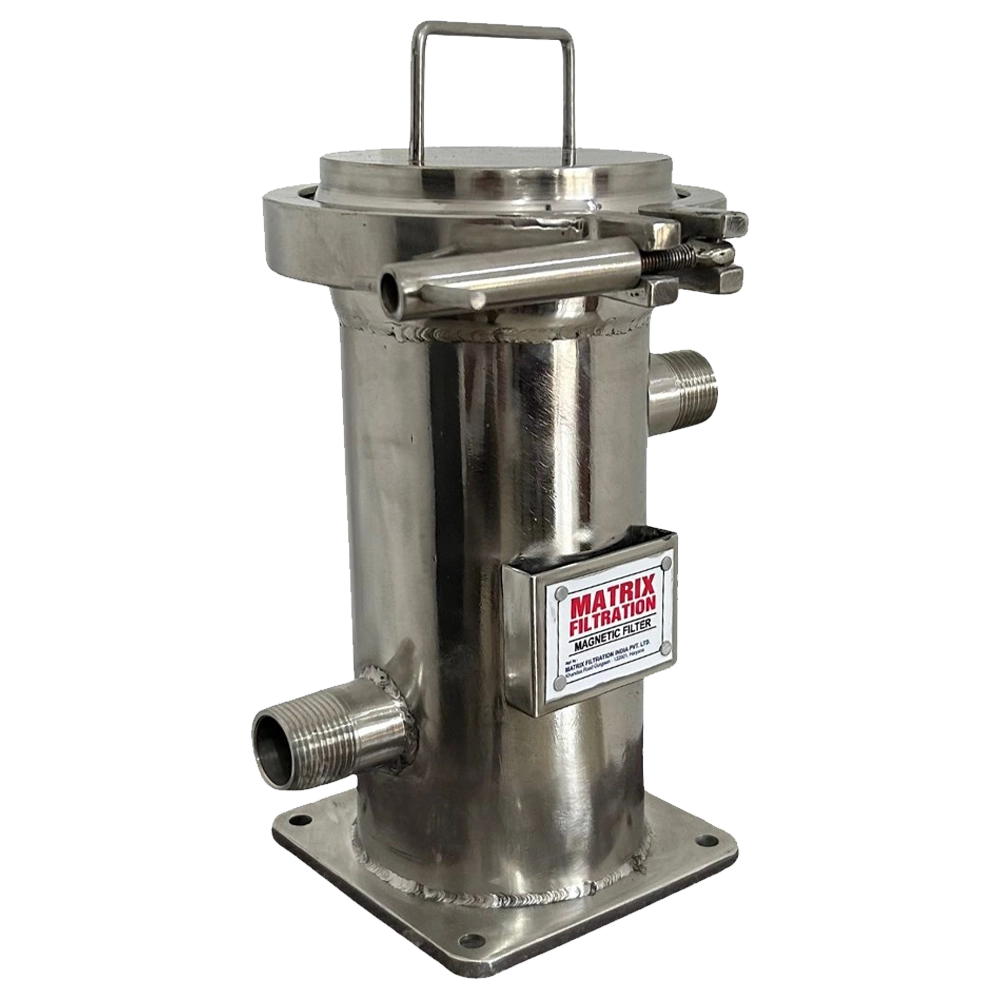

Matrix Magnetic Filter – High-Precision Filtration for Industrial Fluids

The Matrix Magnetic Filter is an advanced, high-efficiency filtration system designed to remove even the finest ferrous contaminants—including iron, stainless steel, and tungsten carbide—from industrial fluids like coolants and cutting oils. This system utilizes a powerful rare earth Neodymium magnet with 11,500 Gauss multipole technology, ensuring superior contamination capture. Unlike conventional filters, it operates without consumables or external power, making it a cost-effective, maintenance-free, and eco-friendly solution for precision industries.

By effectively removing tramp metal particles, this filtration system extends fluid life, enhances surface finish, improves machining accuracy, and reduces wear on tools and machinery, ultimately optimizing industrial performance.

Fluid enters the Matrix Magnetic Filter via the inlet port and flows upward through the high-intensity magnetic rods.
The magnetic field captures fine ferrous contaminants, preventing them from recirculating.
Clean fluid exits via the outlet port, ensuring precision and reliability.

Unique Flow Technology

The magnetic circuit design ensures a continuous, optimized flow path, allowing filtration to remain effective without back pressure, even when fully loaded.

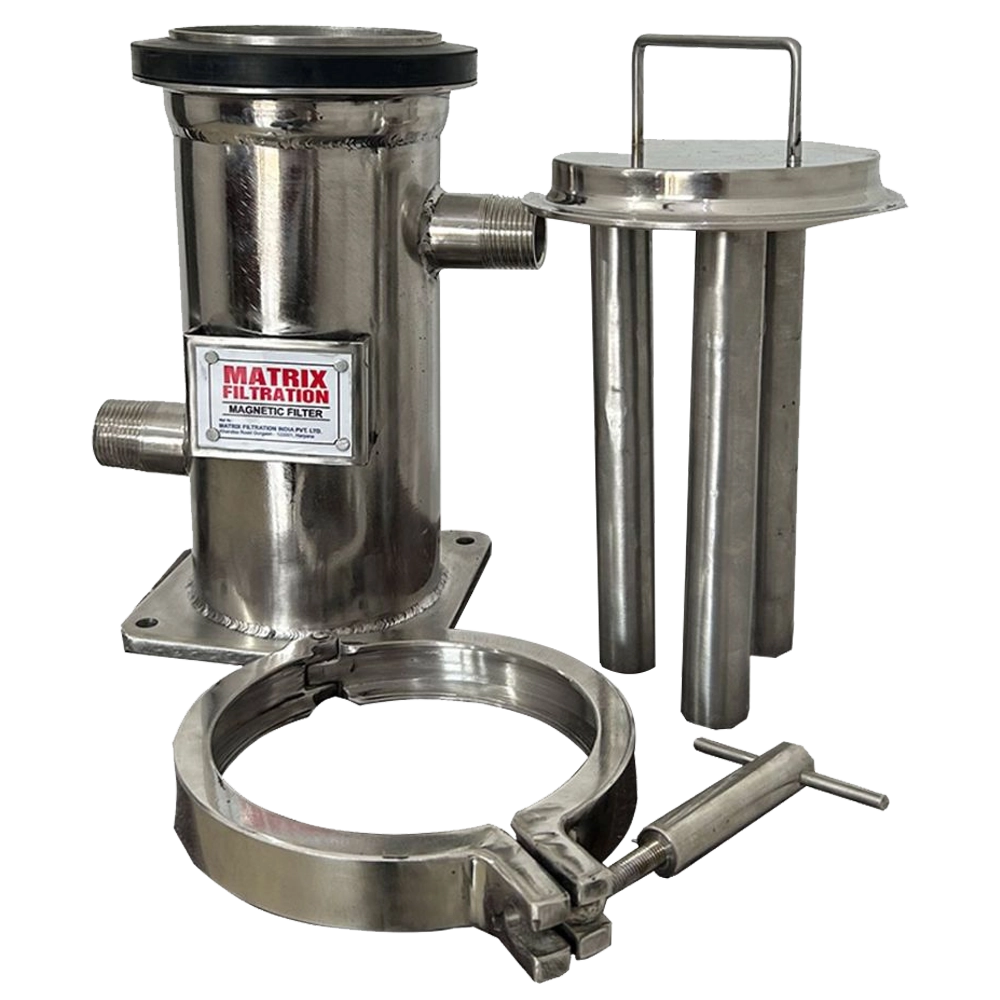

Step 1: Open the clamp to access the magnetic filter.
Step 2: Lift out the contaminated magnetic rods.
Step 3: Use the special cleaning tool to remove trapped particles.
Step 4: Reassemble for uninterrupted operation.

Feature	Details
Filtration Type	Inline/Offline
Cleaning Method	Manual
Construction Material	Full Stainless Steel – 304
Magnet Strength	11,500 Gauss (High-Intensity Neodymium)
Temperature Range	5°C to 80°C

Industry Applications

Matrix Magnetic Filters are widely used in precision machining and manufacturing, including:

Grinding & Honing
Lapping & Shaving
Gun Drilling & Deep-Hole Drilling
Super-Finish & Polishing
Wash Systems & Steel Pipe Cutting
EDM & Laser Cutting
CNC, VMC, HMC Machines
Tungsten Carbide Grinding

Optimize Your Filtration Process with Matrix

Matrix Filtration India Pvt Ltd is dedicated to providing cutting-edge magnetic filtration solutions that enhance industrial efficiency, sustainability, and machine reliability.

📞 Contact Us Today | 📧 Email Inquiry

Product Code	Number of Cores	Maximum Flow Rate	Max. Contamination Holding Capacity	Max. Operating Pressure (BAR)
NM-70	1	Up to 70 LPM	1 kg	08 BAR
NM-150	3	150 LPM	3 kg	10 BAR
NM-250	3	250 LPM	4 kg	10 BAR
NM-500	5	500 LPM	6 kg	10 BAR

Dimensional Details (All Measurements in mm)

Product Code	A	B	C	D	E	Port Size (BSP)
NM-70	225	130	90	30	190	½’’
NM-150	280	194	114	60	220	1’’
NM-250	350	194	114	80	270	1.5’’
NM-500	490	268	170	150	360	2.5’’
