Magnetic Coolant Separators

Enquire Now Download Catalogue

Key Features & Advantages

Fully automatic operation for seamless filtration.
Removes up to 99% of magnetic contaminants, ensuring cleaner coolant.
Compatible with new or existing machines, offering flexible installation.
Sturdy welded powder-coated frame for durability in industrial settings.
Stainless steel magnetic drum with rare-earth magnets for uniform filtration.
Neoprene rubber roller with protective bearings for efficient sludge extraction.
Adjustable stainless steel scraper blade for effective sludge removal.
Electric motor with reduction gear for smooth operation.
Customized designs available to meet unique filtration requirements.

Why Choose Matrix Magnetic Coolant Separators

Improves machining accuracy by maintaining clean coolant.
Extends equipment lifespan by preventing abrasive contamination.
Reduces coolant wastage, minimizing maintenance costs.
Eco-friendly filtration, promoting sustainable coolant usage.
Reliable for high-precision industrial applications.

Product description
Applications
Technical Specifications
How It Works
Coolant Filtration

Matrix Magnetic Coolant Separator – High-Efficiency Contaminant Removal for Coolant Systems

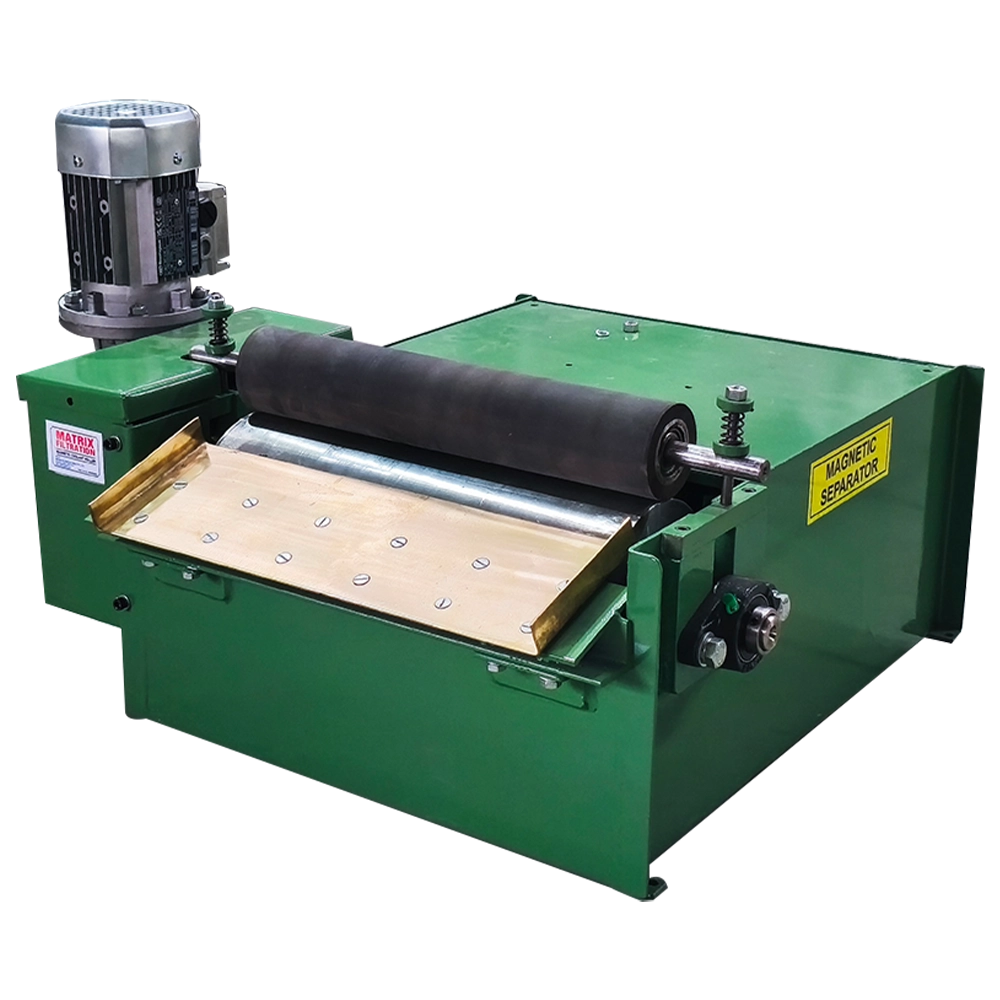

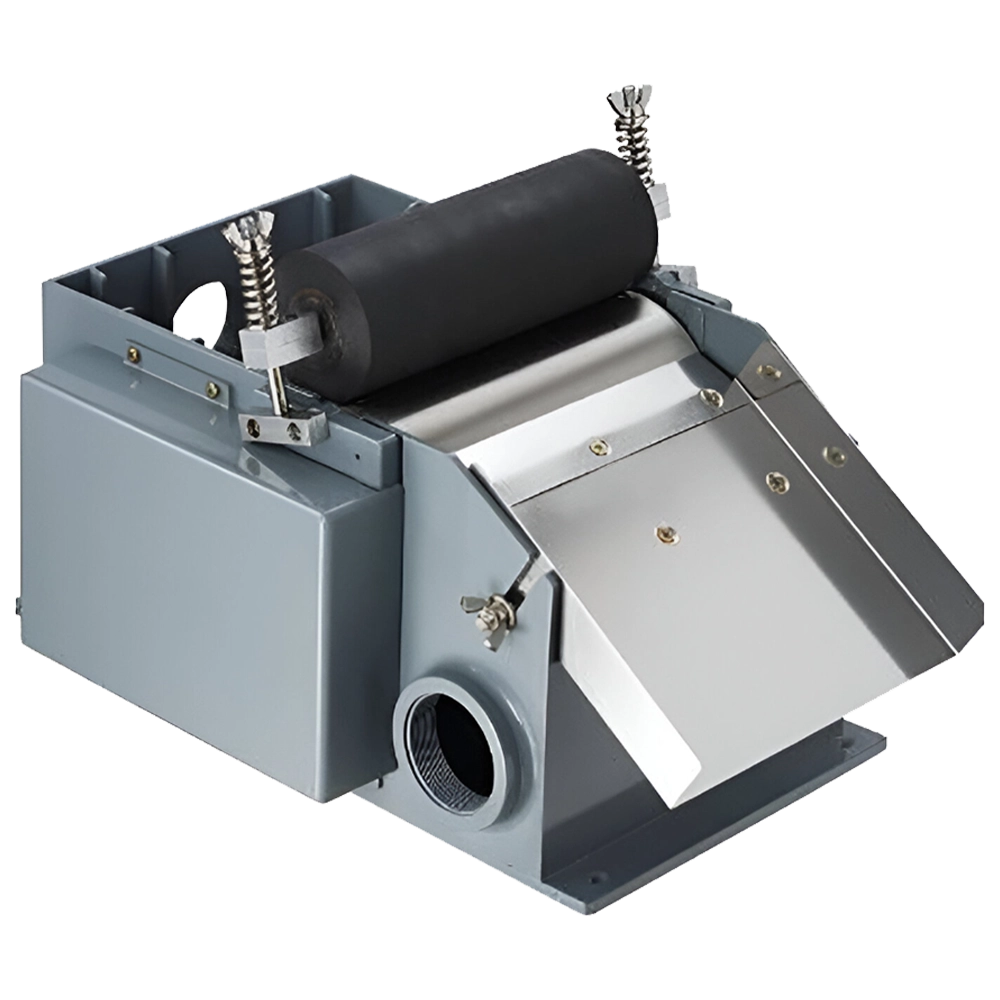

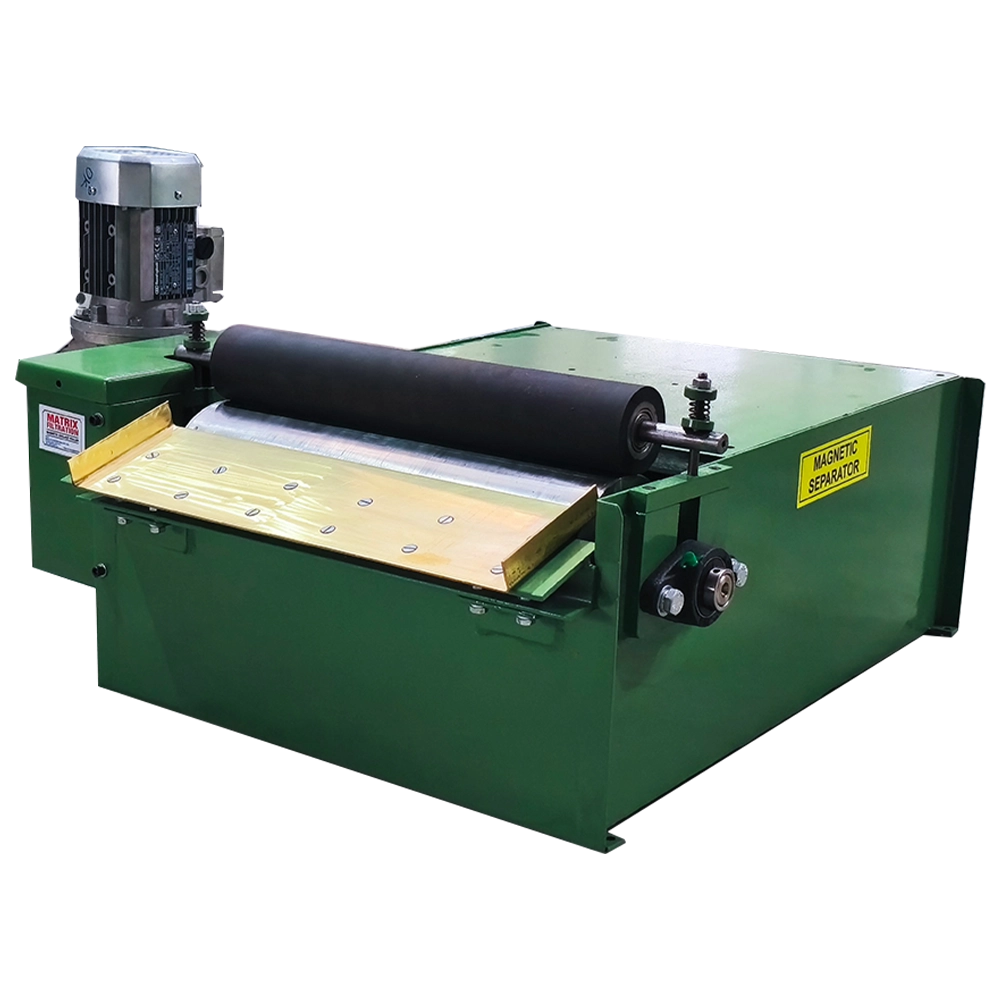

The Matrix Magnetic Coolant Separator is a highly effective and economical solution for extracting ferrous contamination from coolants, improving machining precision, and extending the lifespan of cutting tools, grinding wheels, and pumps. Designed for continuous filtration, this system ensures cleaner coolant, reduces machine downtime, and lowers operational costs.

Utilizing a high-intensity rare-earth magnetic drum, the separator removes up to 99% of magnetic particles, safeguarding industrial processes from unwanted contaminants.

Matrix Magnetic Coolant Separators are ideal for:

Grading Machines
Honing Machines
Shaving Machines
Rolling Mills & Steel Plants
Any coolant return line where contamination is a problem

Feature	Details
Flow Rate	40 LPM – 1000 LPM
Motor	0.12HP – 0.25HP, 3 Phase, 415 V, 50 Hz
RPM	1500 RPM
Material of Construction (MOC)	Mild Steel

Contaminated coolant enters the separator via gravity flow from the machine.
The coolant comes into direct contact with a rare-earth magnetic drum, which captures iron particles.
A scraper blade keeps the magnetic drum clean, ensuring continuous filtration.
A neoprene rubber roller squeezes out the sludge, preventing coolant wastage.
Filtered coolant exits, free of ferrous contaminants.
Captured sludge is directed into a dustbin for reclaim purposes, maximizing efficiency.

Enhance Your Coolant Filtration with Matrix Magnetic Separators

Matrix Filtration India Pvt Ltd specializes in high-performance coolant filtration systems, delivering efficiency, sustainability, and reliability for industrial operations.
